AJAX

Fleet

Royal Navy

Ship Type

Battleship

Nickname

–

Ship Class

King George V

Grouping

2nd Battle Squadron

Command

Grand Fleet

Builder's Yard

–

Budget Year

–

Construction Notes

–

Date Laid Down

27.02.1911

Launch Date

21.03.1912

Completed date

–

Commission date

31.10.2013

Year laid down

–

Year launched

–

Year completed

–

Commission Year

–

Pennant No

–

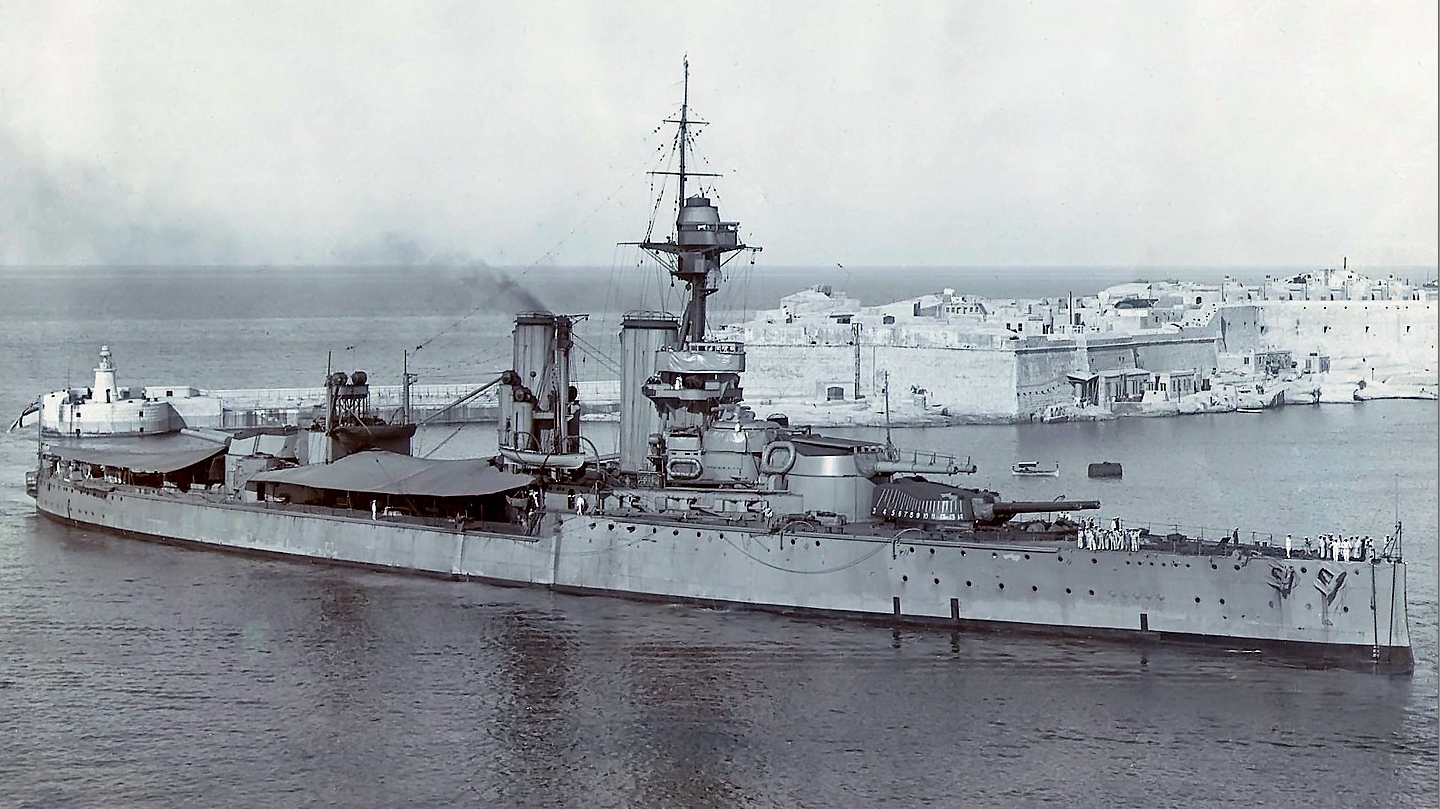

Photo Details

Entering Grand Harbour 1920

Related stories

At the start of 1916, a dummy merchantman (HMS Princess), made up to look like Ajax, as was used for added AS protection. The super-firing turrets (B and X) seriously affected the lower turret crews (B and Y).

Sister ships

–

Eventual Fate

sold for scrap Nov 1926

Jutland result

–

Ready for action after dock repairs

–

Commander

Captain George H. Baird

Noteable Officers

–

Crew complement

900

Officers

–

Ratings

–

Killed

–

Wounded

–

Prisoners

–

Displacement full Load (tons)

23,400

Artefacts Data

–

Ship's Model

–

Length (ft)

598

Length (mtrs)

182

Beam (ft)

89

Beam (mtrs)

27

Draught (ft)

27.5

Draught (mtrs)

8.4

Max. Speed (knots)

21.5

Range (miles)

–

Range (kilometres)

–

Fuel

–

Propulsion

Parsons with 4 shafts. 18 Babcock and Wilcox boilers in 3 boiler rooms. 27,000 shp.

Armour Main Belt

12" 305mm

Deck Armour

3 decks - top 1.5", middle 1", lower 3-4"

Turret Armour IN CM

Faces 11" (279), sides 4"(102), roof 3"(76)

Conning Tower Armour

–

Barbette Armour

–

Weight of armour

–

Armour / Displacement Ratio

–

Watertight compartments

–

General Notes

–

Fire Control Table

Dreyer Mk 11

Fire Control - Clock

–

Primary Gun calibre

13.5"Mk V guns (342.9 mm)

No. Primary Turrets

5

Guns (No.barrels)

10

Primary gun layout

–

Rounds per main gun

–

Effective broadside guns

–

Primary shell Weight (inches or cm)

1,400

Primary Broadside Weight

–

Secondary Gun Calibre

BL 4" MkVII guns (101.6 mm)

Guns (No.barrels) 2

16

Rounds per secondary

–

Other Armament

–

Elevation (degrees)

20 max. ABXY arcs 300 deg.

Gunnery Range (yards)

–

Gunnery Range (metres)

–

Rate of Fire (rds per minute)

2

Shells expended Main

–

Mines dropped

–

Shells expended Secondary

–

Torpedoes fired

–

Gunnery Notes

–

Torpedo Type IN

21" Whitehead

No. tubes

3

Torpedo Type MM

533 mm

No. Mines

–

Torpedo Notes

one on each beam, one astern.
