CALLIOPE

Fleet

Royal Navy

Ship Type

Light cruiser

Nickname

–

Ship Class

C class

Grouping

4th Light Cruiser Squadron, leader Calliope (Le Mesurier)

Command

Grand Fleet

Builder's Yard

Chatham Dockyard

Budget Year

–

Construction Notes

–

Date Laid Down

01.01.1914

Launch Date

17.12.1914

Completed date

–

Commission date

–

Year laid down

1914

Year launched

114

Year completed

–

Commission Year

–

Pennant No

–

Photo Details

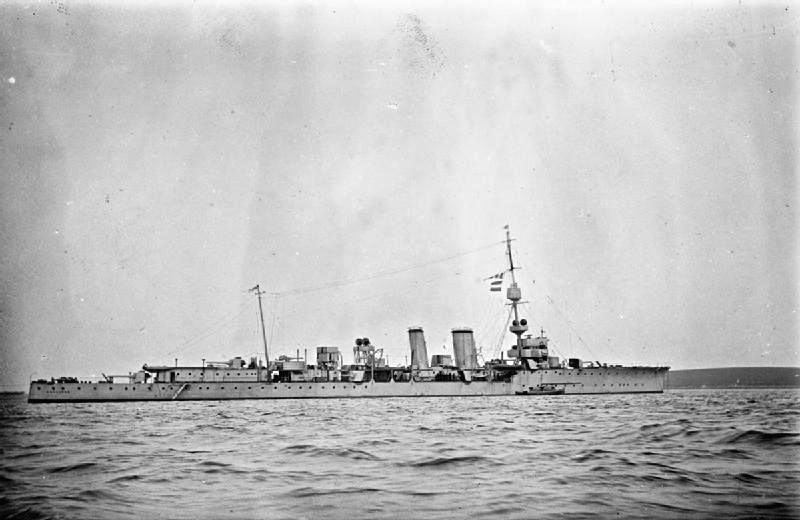

Public Domain. Photographer not identified - This is photograph SP 1375 from the collections of the Imperial War Museums (collection no. 1900-01)

Sister ships

–

Eventual Fate

–

Jutland result

Hit numerous times by SMS Kaiser and SMS Markgraf

Ready for action after dock repairs

–

Commander

Commodore Charles E. Le Mesurier

Noteable Officers

–

Crew complement

324

Officers

–

Ratings

–

Killed

Wounded

Prisoners

Displacement full Load (tons)

3,750

Artefacts Data

–

Ship's Model

–

Length (ft)

446'

Length (mtrs)

136

Beam (ft)

41' 6"

Beam (mtrs)

12.6

Draught (ft)

14' 6"

Draught (mtrs)

4.4

Max. Speed (knots)

28.5

Range (miles)

–

Range (kilometres)

–

Fuel

–

Propulsion

Four shafts powered by two Parsons turbines and eight Yarrow boilers rated at 37,500 shp.

Armour Main Belt

4" midships (100 mm)

Deck Armour

–

Turret Armour IN CM

–

Conning Tower Armour

–

Barbette Armour

–

Weight of armour

–

Armour / Displacement Ratio

–

Watertight compartments

–

General Notes

–

Fire Control Table

–

Fire Control - Clock

–

Primary Gun calibre

–

No. Primary Turrets

–

Guns (No.barrels)

–

Primary gun layout

–

Rounds per main gun

–

Effective broadside guns

–

Primary shell Weight (inches or cm)

–

Primary Broadside Weight

–

Secondary Gun Calibre

BL 6" L/40 Mk XIII guns,

Guns (No.barrels) 2

Rounds per secondary

–

Other Armament

QF 3" 20 cwt AA gun, one machine gun

Elevation (degrees)

–

Gunnery Range (yards)

–

Gunnery Range (metres)

–

Rate of Fire (rds per minute)

–

Shells expended Main

–

Mines dropped

–

Shells expended Secondary

–

Torpedoes fired

–

Gunnery Notes

–

Torpedo Type IN

21"

No. tubes

Torpedo Type MM

533 mm

No. Mines

–

Torpedo Notes

4 more tubes added in 1919

References & sources

–
