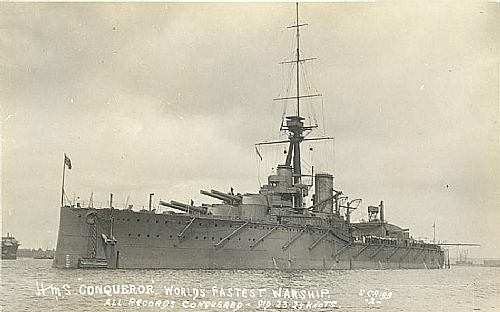

CONQUEROR

Fleet

Royal Navy

Ship Type

Battleship

Nickname

–

Ship Class

Orion

Grouping

2nd Battle Squadron

Command

Grand Fleet

Builder's Yard

William Beardmore and Co. Dalmuir. Cost £1.89 million.

Budget Year

–

Construction Notes

–

Date Laid Down

05.04.1910

Launch Date

01.05.1910

Completed date

–

Commission date

01.12.1912

Year laid down

–

Year launched

–

Year completed

–

Commission Year

–

Pennant No

–

Photo Details

–

Sister ships

Orion, Thunder, Monarch

Eventual Fate

scrapped 1921 after the Washington Naval Conference

Jutland result

Fired 57 heavy rounds - 16 APC and 14 HE.

Ready for action after dock repairs

–

Commander

Captain Hugh H. D. Tothill

Noteable Officers

–

Crew complement

759 -1,100

Officers

–

Ratings

–

Killed

–

Wounded

–

Prisoners

–

Displacement full Load (tons)

25,870

Artefacts Data

–

Ship's Model

–

Length (ft)

581

Length (mtrs)

177

Beam (ft)

Beam (mtrs)

Draught (ft)

Draught (mtrs)

7.3

Max. Speed (knots)

Range (miles)

–

Range (kilometres)

–

Fuel

–

Propulsion

4 shafts. Steam turbines. 1s. Rated 27,999 shp.

Armour Main Belt

Deck Armour

–

Turret Armour IN CM

–

Conning Tower Armour

–

Barbette Armour

–

Weight of armour

–

Armour / Displacement Ratio

–

Watertight compartments

–

General Notes

The muzzle blast of the super turrets caused problems for the lower turrets as blast would often enter through the sighting hoods. Co-incidence rangefinders (5 located in turrets and 2 in the spotting top). 13,5" gun weighed 70 tons EACH barrel and measured 52 feet.

Fire Control Table

Dreyer Mk 111

Fire Control - Clock

–

Primary Gun calibre

13.5" BL (343mm)

No. Primary Turrets

–

Guns (No.barrels)

Primary gun layout

–

Rounds per main gun

–

Effective broadside guns

–

Primary shell Weight (inches or cm)

1,250 HE /burster 176,5 lbs, 1,266 APC burster 30-40 lbs and 1,250 CPC burster 117 lbs

Primary Broadside Weight

–

Secondary Gun Calibre

4" BL Mk VII guns

Guns (No.barrels) 2

Rounds per secondary

–

Other Armament

–

Elevation (degrees)

–

Gunnery Range (yards)

24,000 (less)

Gunnery Range (metres)

–

Rate of Fire (rds per minute)

–

Shells expended Main

–

Mines dropped

–

Shells expended Secondary

–

Torpedoes fired

–

Gunnery Notes

–

Torpedo Type IN

21"

No. tubes

Torpedo Type MM

530 mm

No. Mines

–

Torpedo Notes

4,000 yard range at 35 kts (Whitehead mk II). submerged
