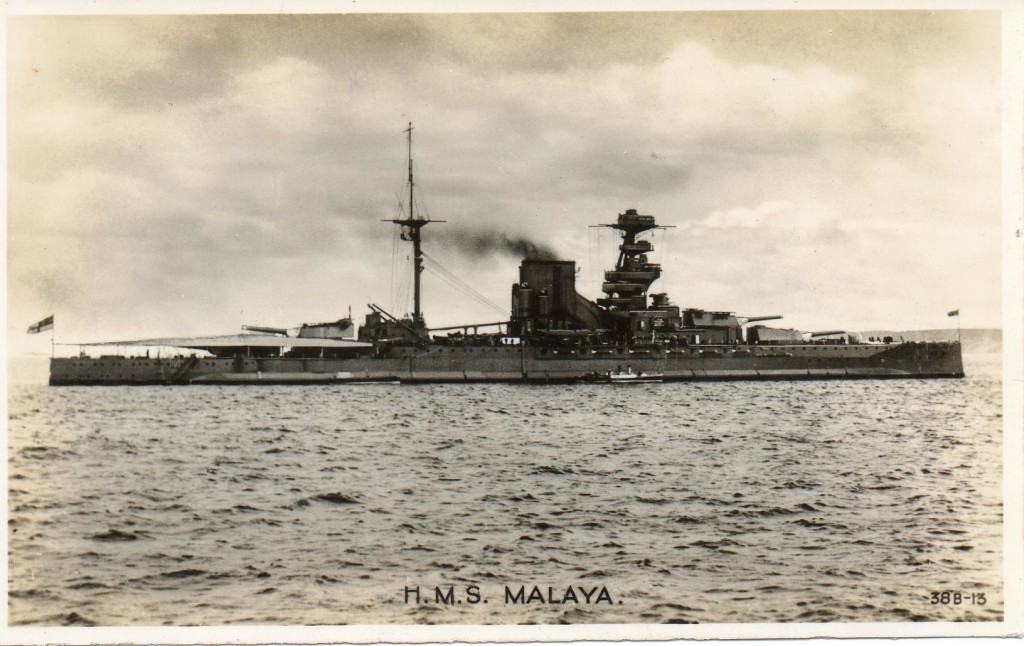

MALAYA

Fleet

Royal Navy

Ship Type

Battleship

Nickname

–

Ship Class

Queen Elizabeth

Grouping

5th Battle Squadron

Command

Battle-cruiser Fleet (temporarily)

Builder's Yard

Amrstrong Whitworth

Budget Year

1913 Estimates

Construction Notes

–

Date Laid Down

20.10.1913

Launch Date

18.03.1915

Completed date

–

Commission date

01.02.1916

Year laid down

–

Year launched

1916

Year completed

–

Commission Year

–

Pennant No

–

Photo Details

–

Sister ships

Queen Elizabeth, Barham, Valiant, Warspite

Eventual Fate

Scrapped

Jutland result

–

Ready for action after dock repairs

–

Commander

Captain The Hon. Algernon D. E. H. Boyle, C.B., M.V.O.

Noteable Officers

–

Crew complement

1,214 - 1,300

Officers

–

Ratings

–

Killed

Wounded

Prisoners

131

Displacement full Load (tons)

33,020

Artefacts Data

–

Ship's Model

–

Length (ft)

645,9

Length (mtrs)

196.8

Beam (ft)

90,6

Beam (mtrs)

27.5

Draught (ft)

29,10

Draught (mtrs)

Max. Speed (knots)

24-25

Range (miles)

4,400

Range (kilometres)

–

Fuel

–

Propulsion

Parsons direct drive steam turbines, 24 boilers, 4 shafts. Rated at 56,600 shp

Armour Main Belt

13" - 6

Deck Armour

–

Turret Armour IN CM

–

Conning Tower Armour

–

Barbette Armour

–

Weight of armour

–

Armour / Displacement Ratio

–

Watertight compartments

–

General Notes

–

Fire Control Table

Dreyer Table Mk 1V, Dreyer Turret Control Table

Fire Control - Clock

–

Primary Gun calibre

15" BL Mk 1 guns

No. Primary Turrets

Guns (No.barrels)

Primary gun layout

–

Rounds per main gun

–

Effective broadside guns

–

Primary shell Weight (inches or cm)

1,920

Primary Broadside Weight

15,360

Secondary Gun Calibre

6" BL Mk XII guns

Guns (No.barrels) 2

Rounds per secondary

–

Other Armament

Two single QF 3+ 20 cwt AA, Two single 3 pdr saluting guns (47 mm)

Elevation (degrees)

Gunnery Range (yards)

24,400

Gunnery Range (metres)

–

Rate of Fire (rds per minute)

–

Shells expended Main

–

Mines dropped

–

Shells expended Secondary

–

Torpedoes fired

–

Gunnery Notes

–

Torpedo Type IN

21" (530 mm)

No. tubes

Torpedo Type MM

–

No. Mines

–

Torpedo Notes

–

References & sources

–
