QUEEN MARY

Fleet

Royal Navy

Ship Type

Battle-cruiser

Nickname

–

Ship Class

Lion

Grouping

1st Battlecruiser Squadron

Command

Battle-cruiser Fleet

Builder's Yard

Palmers (Palmer's Shipbuilding & Iron Co. Ltd., Newcastle-Upon-Tyne), Jarrow

Budget Year

1910-1911 Naval Estimates

Construction Notes

First battle cruiser to mount a sternwalk and restored the officers quarters to the stern of the ship

Date Laid Down

06.03-11

Launch Date

–

Completed date

04.09.2013

Commission date

–

Year laid down

–

Year launched

1912 (mar)

Year completed

–

Commission Year

–

Pennant No

–

Photo Details

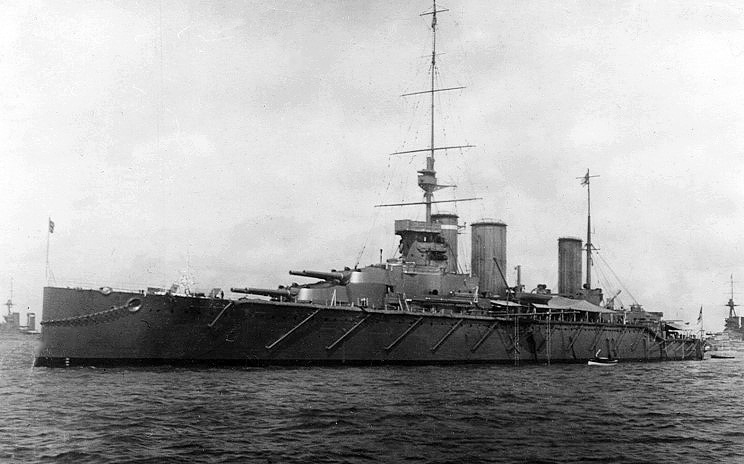

QM in Portland

Sister ships

–

Eventual Fate

–

Jutland result

Sunk after a catastrophic explosion. Only survivor, Midshipman Jocelyn Latham Storey survived in Q turret.

Ready for action after dock repairs

–

Commander

Captain Cecil I. Prowse

Noteable Officers

–

Crew complement

997 (peacetime), 1,275 wartime

Officers

–

Ratings

–

Killed

1266

Wounded

Prisoners

Displacement full Load (tons)

30500

Artefacts Data

–

Ship's Model

–

Length (ft)

703' 6"

Length (mtrs)

214.4

Beam (ft)

89' 0.5"

Beam (mtrs)

27.1

Draught (ft)

32' 4"

Draught (mtrs)

9.9

Max. Speed (knots)

Range (miles)

–

Range (kilometres)

–

Fuel

–

Propulsion

2 paired sets of Parsons direct drive steam turbines in two engine rooms. 42 Yarrow boilers. Delivering 75,000 shp.

Armour Main Belt

9 to 4" (229 to 110 mm)

Deck Armour

2.5" (64 mm)

Turret Armour IN CM

9" (229 mm)

Conning Tower Armour

10" (254 mm)

Barbette Armour

9 to 8" (229 to 203 mm)

Weight of armour

–

Armour / Displacement Ratio

–

Watertight compartments

–

General Notes

–

Fire Control Table

Dreyer Mk 11

Fire Control - Clock

–

Primary Gun calibre

BL 13.5" Mk V (343 mm)

No. Primary Turrets

–

Guns (No.barrels)

Primary gun layout

–

Rounds per main gun

–

Effective broadside guns

–

Primary shell Weight (inches or cm)

1400

Primary Broadside Weight

11200

Secondary Gun Calibre

1 - BL 4" Mk VII guns ( 102 mm)

Guns (No.barrels) 2

Rounds per secondary

–

Other Armament

–

Elevation (degrees)

Gunnery Range (yards)

23740

Gunnery Range (metres)

–

Rate of Fire (rds per minute)

–

Shells expended Main

–

Mines dropped

–

Shells expended Secondary

–

Torpedoes fired

–

Gunnery Notes

–

Torpedo Type IN

No. tubes

Torpedo Type MM

533

No. Mines

–

Torpedo Notes

Mk II submerged
