WIESBADEN

Fleet

HochSeeFlotte

Ship Type

–

Nickname

–

Ship Class

Wiesbaden

Grouping

2nd Scouting Group

Command

–

Builder's Yard

Vulkan AG, Stettin

Budget Year

–

Construction Notes

–

Date Laid Down

–

Launch Date

20.01.2015

Completed date

23.08.2015

Commission date

–

Year laid down

1913

Year launched

1915

Year completed

–

Commission Year

1915

Pennant No

–

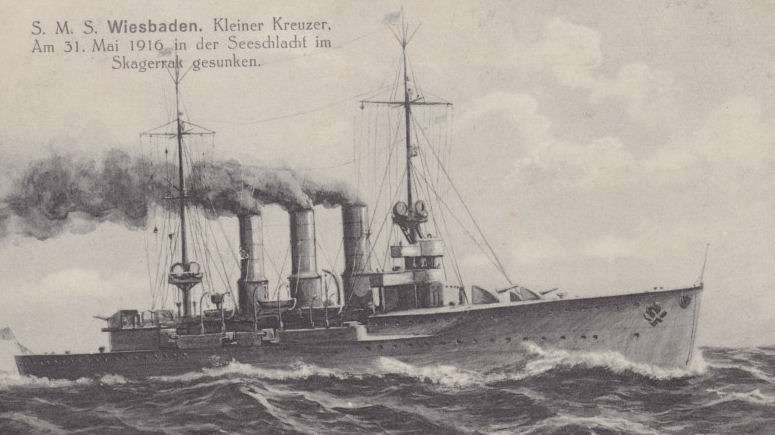

Photo Details

Courtesy Alexander Monreal

Sister ships

–

Eventual Fate

–

Jutland result

Struck by multiple gunfire and a torpedo strike at 2,000 yards from HMS Onslow. She sank between 01:45 and 02:45 June 1st 1916.

Ready for action after dock repairs

–

Commander

Fregattenkapitän Fritz Reiß

Noteable Officers

Heizer Hugo Zenne, Gorch Fock

Crew complement

–

Officers

17 (peacetime)

Ratings

–

Killed

589

Wounded

–

Prisoners

–

Displacement full Load (tons)

6,601 long

Artefacts Data

Torpedo (Thyboron Sea War Museum, Denmark)

Ship's Model

–

Length (ft)

477'

Length (mtrs)

145.30000000000001

Beam (ft)

46'

Beam (mtrs)

13.9

Draught (ft)

18.9'

Draught (mtrs)

5.76

Max. Speed (knots)

27.5

Range (miles)

5,500 at 12 kts

Range (kilometres)

–

Fuel

Carried 1,280 long tons of coal and 460 lomg tons of oil giving her a range of 4,800 nm (5,500 miles).

Propulsion

10 coal fired water tube and 2 oil fred boilers. Gave 31,000 shp (shaft horsepower).

Armour Main Belt

2.4" (60 mm)

Deck Armour

60 mm

Turret Armour IN CM

–

Conning Tower Armour

3.9" (100 mm)

Barbette Armour

–

Weight of armour

–

Armour / Displacement Ratio

–

Watertight compartments

–

General Notes

–

Fire Control Table

–

Fire Control - Clock

–

Primary Gun calibre

–

No. Primary Turrets

Guns (No.barrels)

Primary gun layout

–

Rounds per main gun

–

Effective broadside guns

–

Primary shell Weight (inches or cm)

–

Primary Broadside Weight

–

Secondary Gun Calibre

8.8 cm SK L/45

Guns (No.barrels) 2

Rounds per secondary

–

Other Armament

–

Elevation (degrees)

–

Gunnery Range (yards)

17,600

Gunnery Range (metres)

–

Rate of Fire (rds per minute)

–

Shells expended Main

–

Mines dropped

–

Shells expended Secondary

–

Torpedoes fired

–

Gunnery Notes

–

Torpedo Type IN

–

No. tubes

Torpedo Type MM

500

No. Mines

–

Torpedo Notes

–
